What's the difference between sound deadening and heat insulation?

They address different problems and work together as Layer 1 and Layer 2 in the same installation:Sound deadening uses constrained-layer damping to control vibration in metal panels. That vibration is the source of structure-borne road noise at highway speeds. Heat insulation blocks radiant heat transfer through the panel and absorbs the airborne noise that travels through the air gap between the panel and the interior. For car sound deadening material and Layer 1 products, see the Dynamat Xtreme collection: https://www.dynamat.com/products/dynamat-xtreme/.

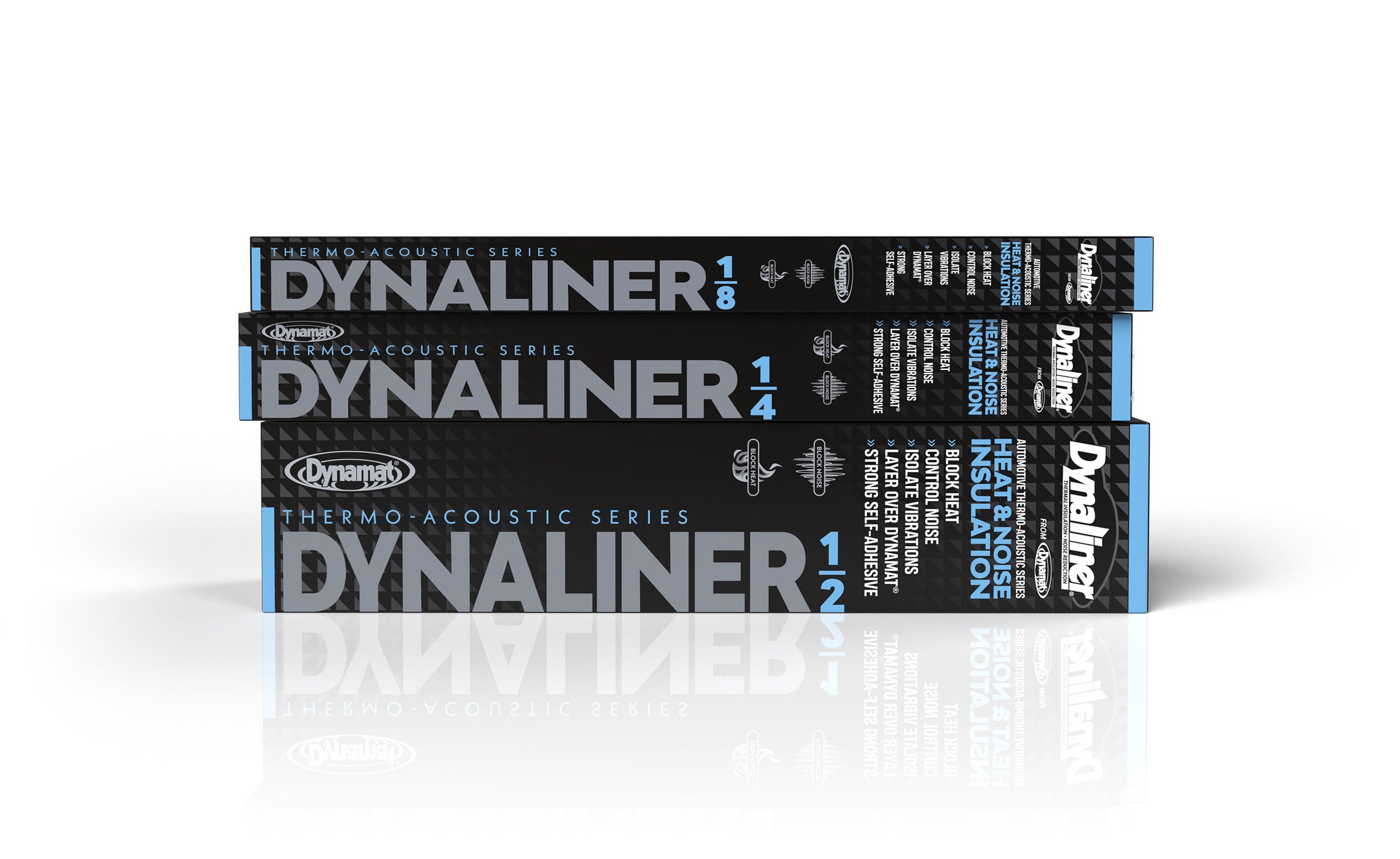

Dynaliner Thermal Insulation for Cars

When you think about automotive thermal insulation, it usually starts with a specific heat you already know: the firewall that's warm to the touch after a drive, the floor pan that radiates up through your boots at highway speeds, or the roof that's been baking in the sun since you parked. Factory builds address some of it, but most leave the rest untreated. Dynaliner is Dynamat's closed-cell synthetic rubber thermal barrier for cars. It blocks radiant heat transfer and absorbs airborne noise, in sheets that cut to fit any interior surface. It comes in three thicknesses: 1/8", 1/4", and 1/2", each matched to specific application zones. It's oil-resistant, won't absorb water, and uses a self-adhesive backing for direct installation over bare metal, floor pans, firewalls, doors, and roof panels. As a car insulation material, it addresses what vibration damping alone can't solve. Where Dynamat Xtreme controls structural resonance in the panel itself, Dynaliner handles the thermal load and airborne noise that persist after the vibration is controlled. It delivers car heat and sound insulation as a single closed-cell product.

HeatNoise

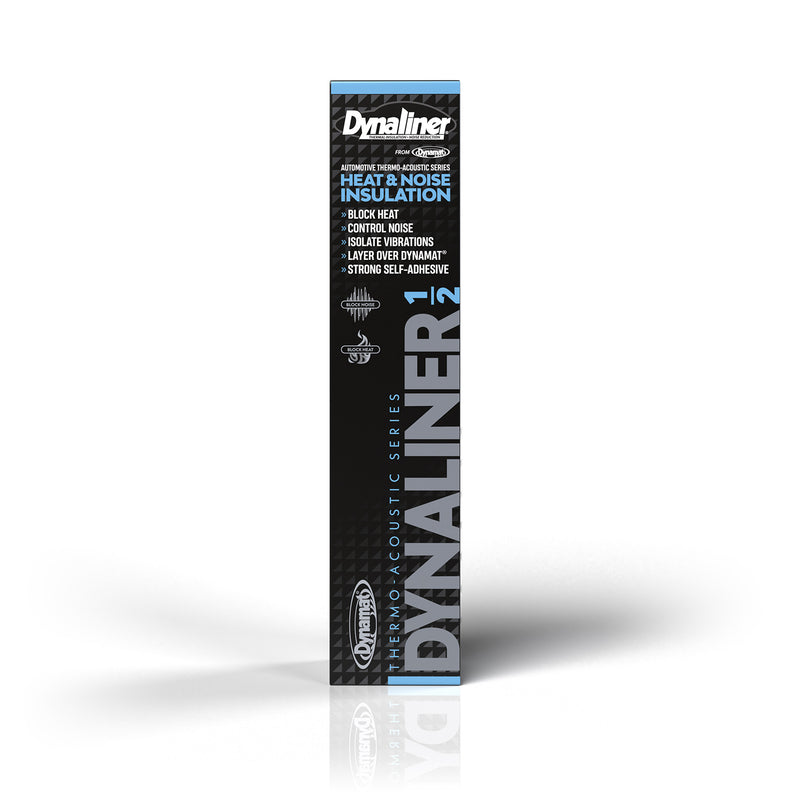

Dynaliner 1/2" Thermal Barrier and Car Heat Insulation

4.9 (23)

HeatNoise

Dynaliner 1/4"

4.8 (20)

HeatNoise

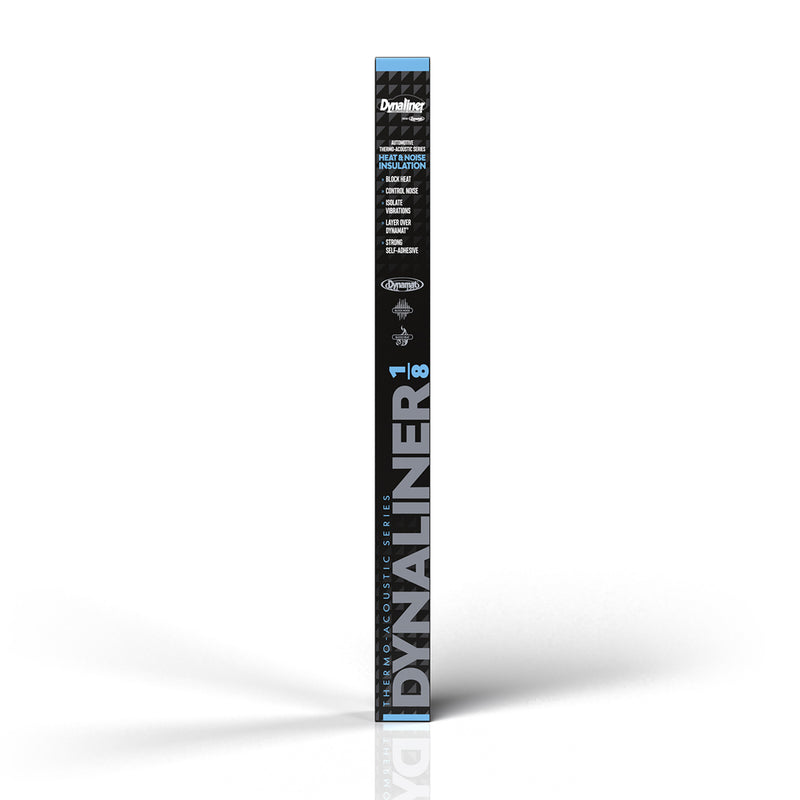

Dynaliner 1/8 inch

4.9 (22)

HeatNoise

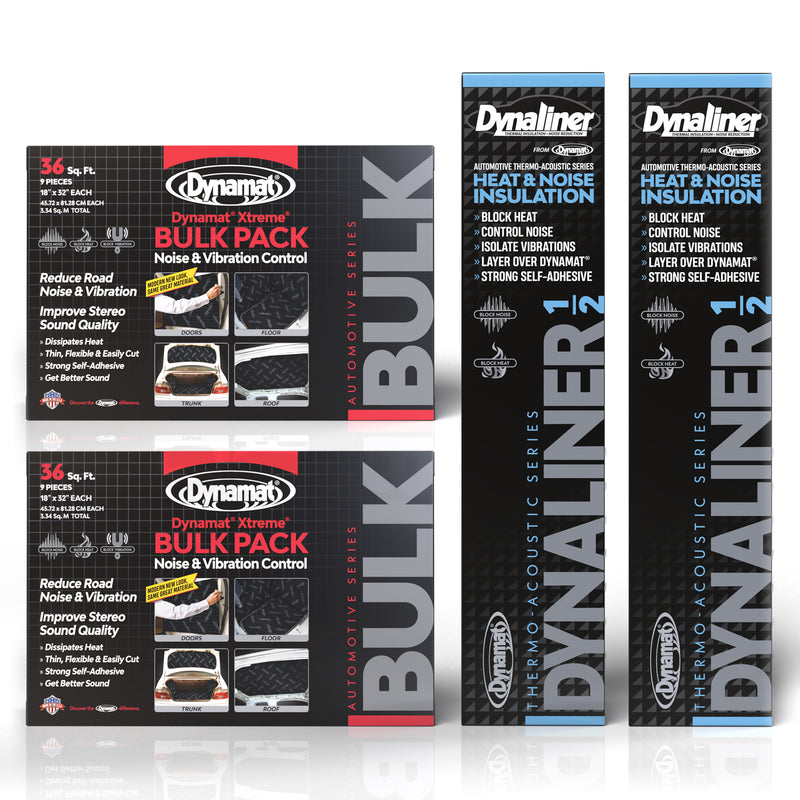

Bulk Packs Dynaliners

Showing 4 of 4 products

What You Need to Know

When you think about automotive thermal insulation, it usually starts with a specific heat you already know: the firewall that's warm to the touch after a drive, the floor pan that radiates up through your boots at highway speeds, or the roof that's been baking in the sun since you parked.

Factory builds address some of it, but most leave the rest untreated.

Dynaliner is Dynamat's closed-cell synthetic rubber thermal barrier for cars. It blocks radiant heat transfer and absorbs airborne noise, in sheets that cut to fit any interior surface. It comes in three thicknesses: 1/8", 1/4", and 1/2", each matched to specific application zones. It's oil-resistant, won't absorb water, and uses a self-adhesive backing for direct installation over bare metal, floor pans, firewalls, doors, and roof panels.

As a car insulation material, it addresses what vibration damping alone can't solve. Where Dynamat Xtreme controls structural resonance in the panel itself, Dynaliner handles the thermal load and airborne noise that persist after the vibration is controlled. It delivers car heat and sound insulation as a single closed-cell product.

Why Your Vehicle Needs Dedicated Automotive Thermal Insulation

Heat doesn't enter a vehicle from one direction. It comes from the engine, the exhaust, the road, and the sun — often at the same time, through different surfaces.

Where Heat Enters Your Cabin

Cabin heat has four primary entry points, and each one benefits from a proper car heat insulation layer.

Firewall: Engine heat radiates continuously through the steel between the engine bay and the footwell. In performance vehicles and hot rods, where the engine sits close to the firewall, this load is sustained at idle and increases at speed.
Floor pan: Exhaust systems route near the floor on most vehicles. The heat transfers through sheet steel every mile driven, and standard carpets and padding don't meaningfully interrupt it.
Roof panel: Solar load accumulates through the roof during sun exposure. Dark-colored vehicles or those parked outdoors can build significant ceiling temperatures over hours, which then radiate downward into the cabin.
Transmission tunnel: A consistent heat source in manual-transmission and high-output builds and one that's often overlooked in a thermal treatment.

Addressing all four zones keeps the interior stable and reduces the load on the HVAC system.

Dynaliner vs. Other Car Insulation Materials

The car insulation foam category includes several materials that perform differently under real automotive conditions:

Reflective bubble foil: Uses an air-gap radiant barrier that depends on intact air pockets to function. Those pockets collapse under compression in a closed installation, and performance drops with them. Not suited for direct contact against a firewall or floor pan.
Fiberglass batt: Repurposes building insulation for automotive use. It absorbs and retains moisture, which increases the risk of corrosion beneath the panel and causes the material to break down over time. Handling during installation also poses irritation risks that closed-cell products don't.
Spray-on ceramics: Apply as a liquid and cure in place. Once cured, they can't be repositioned, and coverage depends heavily on application technique. They're typically used as a base layer rather than a complete solution on their own.

Dynaliner is closed-cell synthetic rubber foam. It doesn't absorb moisture, bonds to Xtreme or bare metal, and comes in three calibrated thicknesses for each installation zone — integrating directly into the layered system without the limitations above.

Where to Install Dynaliner in Your Vehicle

The firewall and floor pan are the two zones that matter most. Everything else is secondary.

Firewall and Floor Pan: Maximum Heat Reduction

The firewall and floor pan carry the highest thermal load in most vehicles, and they're where a full-thickness layer delivers the most measurable difference. The 1/2" thickness is the right call for both zones: maximum closed-cell foam depth for maximum thermal barrier.

At the floor pan, the self-adhesive backing bonds directly to clean steel or to Dynamat Xtreme after it is in place. Extend the layer up the transmission tunnel to close the gap between the floor and the tunnel sides. That's where a thorough car floor insulation treatment pays off on high-output builds.

At the firewall, the material cuts around pedal assemblies, brake booster housings, and wiring with a standard utility knife. No specialist tools required. Apply Xtreme to the firewall steel first, then layer Dynaliner 1/2" directly over it for a complete vibration-and-thermal treatment.

Roof, Doors, and Quarter Panels

The same logic applies across the rest of the vehicle, with thickness matched to available clearance:

Below are simply general guidelines. We always recommend using the thickest product your space will allow.

Roof: Car roof heat insulation needs less material than the floor or firewall. The 1/4" fits between the roof panel and headliner without modification, adhering to the inner roof skin to cut solar heat absorption before it reaches the headliner surface.
Doors: 1/8" delivers enough thermal and acoustic benefit within the clearance that door cavities allow.
Hood: Car hood insulation at the inner panel reduces underhood temperature and benefits electronics near the firewall. As a car hood insulation material, 1/8" is the right thickness. It trims to the inner surface without specialist cutting.
Quarter panels and B-pillars: Secondary zones, but worth covering. They bleed heat from sun-exposed exterior panels into the cabin. 1/4" covers each surface cleanly in the same installation session.

How Dynaliner Works with Dynamat Xtreme

Dynaliner is built to work within a layered system. Understanding the layers makes the installation decision straightforward:

Layer 1 — Xtreme: Applied directly to bare metal panels. Uses constrained-layer damping to control panel vibration, converting structural resonance into low-level heat. This is the car sound insulation material layer. Its job is vibration, not heat.
Layer 2 — Dynaliner: Applied over Xtreme. Blocks the radiant heat that continues to transfer through the now-damped panel and absorbs the airborne noise traveling through the air gap between the panel and the interior surface.
Layer 3 — DynaCore or DynaPad: Optional. Decouples the interior surface from the structure. Worth adding for audio builds or premium NVH treatment [LINK: What Is NVH in Cars blog], but not required for a thermal-focused installation.

For most heat reduction builds, Layers 1 and 2 cover the objectives. Browse the Dynamat Xtreme collection and the DynaCore thermo-acoustic insulation collection for the full range.

Choosing the Right Thickness

Three Dynaliner thicknesses are available. Match each to available clearance and thermal priority.

Thickness

Best For

Notes

1/2"

Firewall, floor pan

Maximum thermal barrier; best for highest-heat zones where clearance allows

1/4"

Roof, quarter panels, general body surfaces

Balanced coverage for most interior zones without clearance issues

1/8"

Door panels, headliner cavities, hood underside, tight door cavities

Fits where thicker materials won’t; ideal for low-clearance areas

Dynaliner Bulk Packs cover full-vehicle projects. For mixed applications, order the thickness appropriate to each zone and apply in a single installation session. Standard installation tools can handle all cutting and fitting.

Dynaliner: FAQs

For direct installation against firewalls, floor pans, and roof panels, closed-cell foam is the most reliable option. It doesn't absorb moisture, doesn't compress into dead voids, and provides consistent thermal resistance across the surface.

Reflective bubble foil depends on air gaps that collapse in a closed installation. Fiberglass absorbs moisture and degrades under a sealed panel. Spray-on ceramics work for specific engine-bay use but don't integrate into a layered system.

Dynaler 1/2" or 1/4" is the right car heat insulation material for primary heat zones in most vehicles.

Yes, when the material and installation zone match the heat source. Radiant heat from the engine and exhaust conducts through sheet steel into the cabin.

A closed-cell foam layer with adequate thickness interrupts that transfer before it reaches the interior. The result depends on coverage area and the original thermal load. Vehicles with high-output engines, close exhaust routing, or minimal factory insulation see the largest improvement.

Full firewall and floor pan coverage with Dynaliner 1/2" addresses the two highest-load zones in a single installation.

Prioritize the firewall first, then the floor pan, then the roof. The firewall sees the highest sustained thermal load, while the floor pan carries exhaust heat at speed. The roof accumulates solar heat, especially in dark-colored vehicles.

Doors and quarter panels are secondary. Match thickness to available clearance:

1/2" for firewall and floor
1/4" for roof and quarters
1/8" for doors and tight spaces

They address different problems and work together as Layer 1 and Layer 2 in the same installation:

Sound deadening uses constrained-layer damping to control vibration in metal panels. That vibration is the source of structure-borne road noise at highway speeds.
Heat insulation blocks radiant heat transfer through the panel and absorbs the airborne noise that travels through the air gap between the panel and the interior.

For car sound deadening material and Layer 1 products, see the Dynamat Xtreme collection: https://www.dynamat.com/products/dynamat-xtreme/.
