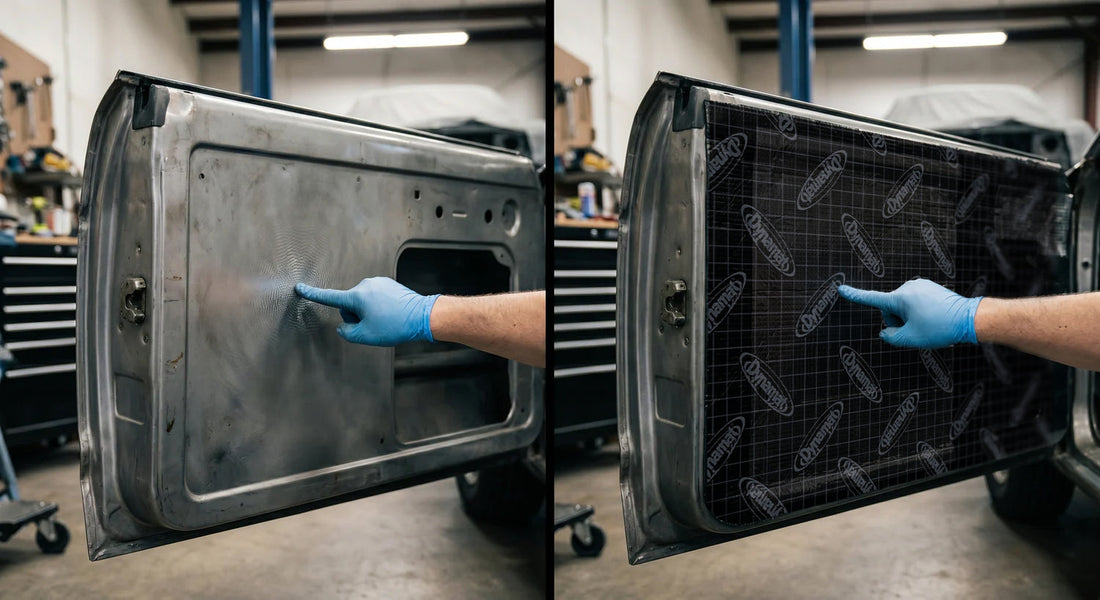

Tap an untreated door panel, and listen to the hollow ring that follows. Bond Dynamat Xtreme to the back of that same panel, and tap it again. The sound is dead.
That gap, between a metallic ring and a flat thud, is the entire science of vibration damping captured in a single experiment.
The same dynamic plays out across every panel in your car. The doors, floor pan, roof, and trunk lid all behave like the untreated panel you just tapped, except they're getting hit constantly while you drive. Energy from the road, speakers, engine, and wind all feed vibration into the metal, and the metal radiates it back as noise.
That's the buzzing audio system, the highway drone, and the hollow feel most drivers have learned to live with.
This guide breaks down how vibration damping works, why a single material layer makes all the difference, and where the results are the most noticeable on the vehicle.
What Is Vibration Damping?
Vibration damping is the process of stopping metal panels from vibrating and resonating when energy hits them. That's the entire definition, and it's worth being precise about: damping doesn't block noise or absorb sound. It's controlling movement at the source.
Most cabin noise complaints are misdiagnosed as audio problems when the real cause is vibration. A door panel flexing at low frequency isn't a tuning issue with your speakers. It's the panel acting like a second cone, smearing the bass response and adding noise the engineer never intended.
Stop the movement, and everything downstream of it gets quieter.
Beyond Cars: Vibration Damping in Industrial Applications
Vibration dampeners and isolators appear in many different applications beyond automotive, from industrial machinery to precision medical equipment. The job stays the same in each one: control resonance, prevent part failure, and protect sensitive components from the heat, motion, and load of the operating environment.
The physics doesn't change from one application to the next. Only the surface does.
Why Car Panels Ring Like a Drum
Sheet metal in a vehicle is thin and flexible, and it covers large flat sections engineered for weight, aerodynamics, and cost. Because acoustic performance often takes a backseat, those panels are naturally prone to resonance.
Energy reaches the panel from four constant sources:
- Road input through the suspension
- Speaker output from inside the door
- Engine vibration from moving parts under the hood
- Wind pressure across the exterior
Every one of these elements excites the panel at frequencies it can't adequately dissipate on its own. The flat surface flexes, the air moves with it, and you hear the result inside the cabin.
In effect, your doors and floor pan act like speakers you didn't install. Audio tuning, foam, and carpet padding can help, but they can't fully address a resonating panel on their own. That's why panel resonance is one of the most overlooked causes of cabin noise complaints, and, in many cases, it's the one most owners skip.
What Happens When You Add a Damping Layer
A damping layer changes the equation by physically restricting how the panel can move. The mechanism is called constrained-layer damping (CLD), and it's the engineering standard used in Dynamat Xtreme. A high-grade butyl elastomer bonds directly to the metal, and a thin aluminum constraining layer sits on top.
When the panel tries to flex, the butyl is forced to shear between the metal and the aluminum. That shear motion converts mechanical energy into low-grade heat, a characteristic called hysteresis. The energy that would have radiated into the cabin as noise is dissipated as a tiny temperature rise across the patch.
That's why a treated panel sounds dead when you tap it. The vibration still arrives, but far less of that energy is allowed to radiate back out as noise.
Vibration Damping vs. Sound Absorption vs. Sound Blocking
These three terms get used interchangeably, and they shouldn't be. Each one targets a different problem.
- Vibration damping stops structure-borne energy. It fixes resonating metal panels.
- Sound absorption uses open-cell foam to soak up airborne noise already inside the cabin. Closed-cell foam products like Dynaliner sit between absorption and blocking. They reduce airborne sound transmission and add thermal insulation through the floor and firewall.
- Sound blocking uses dense mass to prevent sound from passing from one side of a barrier to the other. Dynamat's products in this category are DyNil (mass-loaded vinyl) and DynaPad (heavy-duty thermo-acoustic barrier).
Sprays and liquid coatings make up a fourth category, but most apply too thin to handle low-frequency panel resonance the way a CLD mat can.
The most common mistake in DIY sound deadening is reaching for foam first, but foam alone won't quiet a resonating door. The metal will keep ringing underneath it, and you'll wonder why an expensive install made almost no difference.
The correct order is damping first, then absorption, then blocking, because vibration is the foundation everything else builds on.
Why Damping Improves More Than Just Noise
A treated panel changes the entire character of a vehicle, and audio is the most obvious win. Once doors stop vibrating with the music, bass tightens, midrange clears, and the soundstage stops collapsing into the panels themselves. Speaker manufacturers spec their drivers around stable enclosures, and an untreated door isn't that.
Beyond audio, damping eliminates the rattles and buzzes that develop in trim, hardware, and clips over time, and highway drone drops along with them. The cabin feels more solid when doors close, when windows roll up, and when you knock on a panel.
Driver fatigue can decrease on long trips because the body stops working overtime to filter unwanted vibration. NIOSH research on whole-body vibration in vehicle operators links sustained exposure to operator fatigue, which helps explain why reducing cabin vibration can make long drives feel less tiring.
Where to Apply Vibration Damping First
Not every panel deserves equal treatment. Coverage strategy depends on which surfaces produce the most measurable energy and how those surfaces interact with the cabin. To determine priority, identify the largest flat sections first, then expand to other parts of the body that carry the most continuous vibration loads.
Five locations make up the priority list:
- Doors: Large surface area, speaker enclosure, primary path for road and wind noise
- Floor Pan: Direct line for road vibration through the suspension
- Roof: Rain, wind, and high-frequency drone at speed
- Trunk and Rear Deck: Bass interaction and low-frequency cabin resonance
- Firewall: Engine vibration and heat transfer
You don't need 100% coverage to get most of the gain. The bulk of the result comes from strategic placement on the largest flat sections, starting with the doors and floor and working outward from there. The full Dynamat automotive collection is built around this priority order.
What Makes a Damping Material Effective
Not all damping materials perform the same way under automotive conditions. Heat, time, and constant flex are the three forces a damping material has to withstand, year after year. The right material maintains its behavior across all three, and that consistency is what turns the install into a one-time job.
Look for four qualities:
- Butyl base: Butyl rubber converts vibration into low-grade heat through molecular shear and stays stable across cabin temperature ranges. Lower-grade formulations can lose damping behavior under sustained heat.
- Adhesive strength: The butyl has to bond directly to the metal so shear energy transfers cleanly through the damping layer. Weak adhesion creates air gaps that defeat the constrained-layer mechanism.
- Constraining layer: The aluminum on top forces the butyl to shear under load. If it's too thin, it flexes with the panel instead, and the damping mechanism breaks down.
- Temperature stability: Car cabins swing from sub-freezing in winter to well over 150°F in summer sun. A real damping material maintains its behavior across that full range, year after year.
Why Dynamat Xtreme Is Built for This Job
Dynamat Xtreme is purpose-built for constrained-layer damping in vehicles. The butyl chemistry, adhesive system, and aluminum thickness are engineered to withstand the heat, vibration, and time demands of automotive panels.
It's the material professional installers and high-end audio shops reach for when consistency matters. SAE J1637 third-party testing shows Dynamat Xtreme delivers up to 88% damping improvement over the industry average at 200Hz. The damping behavior holds across surfaces, temperatures, and years of service, so a patch installed today performs the same way after years on the road.
For a complete NVH approach, pair Dynamat Xtreme with Dynaliner, which adds a closed-cell foam layer that blocks airborne sound and reduces heat transfer through the floor and firewall.
For broader context on the forces this addresses, see the related guide on what NVH means in cars.
The Takeaway: Vibration Damping Changes the Foundation
Most noise problems start with vibration. Stop the panel, and everything downstream of it improves: audio clarity, highway drone, rattles, fatigue, and the overall feel of the cabin. The difference isn't subtle. Tap a treated panel, and you hear it immediately in your hand. That's the science you can feel.
Ready to start with the panel that matters most? Explore the full Dynamat automotive range.
Vibration Damping: FAQs
Does Vibration Damping Reduce Road Noise?
Yes, indirectly. Most cabin road noise enters the vehicle as structure-borne vibration through the floor pan and suspension mounts. Damping the floor pan stops the panel from amplifying that vibration into audible noise, which lowers overall cabin loudness and reduces drone at highway speeds.
Is Sound Deadening the Same as Vibration Damping?
Sound deadening is an umbrella term that includes vibration damping, sound absorption, and sound blocking. Vibration damping is the structural component, the piece that addresses resonating metal panels. Foam-based products handle airborne sound. A complete sound-deadening install uses both.
What Is the Best Vibration Damping Material?
Vibration damping materials aren't created equal. The best options are butyl-based with an aluminum constraining layer. Butyl absorbs shear under load and converts that motion into low-grade heat, while the aluminum keeps the butyl in compression long enough for the energy to dissipate.
Do I Need Foam After Damping?
It depends on the goal. If the priority is panel resonance and audio improvement, damping alone delivers most of the result. For airborne noise reduction at highway speeds or heat insulation through the firewall and floor, Dynaliner adds a closed-cell foam layer that blocks sound transmission and reduces heat transfer.
