Most car owners stick a single product to their door panels, hear an immediate improvement, and assume the job is done. A few weeks later, the panel still rattles, road noise still drones at 70 mph, and the realization sets in: only half the problem was ever treated.
Acoustic foam and butyl mat are the two core sound-deadening materials in any serious build, but they're not interchangeable. Each solves a completely different problem. Butyl mat stops structural vibration at the panel, while acoustic foam absorbs the airborne noise still bouncing through the cabin.
The right combination of both is what creates a truly quiet ride, and once you understand where each material fits, it becomes clear why the money spent on both layers pays off in a way a single product never can.
What Happens Inside Your Car Without Treatment
Thin metal panels behave like drum heads. Doors, roofs, floors, and trunk lids resonate the moment vibration hits them, showing up as buzz, panel ring, and muddy bass. At the same time, airborne noise leaks in through large gaps around door seals and trim, while hard interior surfaces reflect rather than absorb sound. So more sound bounces back into the cabin instead of being damped.
The combined effect is rattles, low-frequency drone, and the kind of fatigue that builds on a long drive without you realizing why.
You can’t fix both with a single material. Vibration and airborne noise behave differently, and each one needs the right tool.
Butyl Mat: Stops Vibration at the Source
A butyl sound deadener bonds directly to metal panels and converts vibration energy into low-level heat through constrained-layer damping (CLD). The mat adds mass, stiffens the panel, and stops it from acting like a speaker for every mechanical input the car receives.
What You Feel Immediately
The knock test is the fastest way to confirm it works. Before treatment, a door panel rings hollow. After butyl rubber is applied and rolled in, that same knock returns a solid thud. The door feels heavier and more rigid the moment you close it.
What It Fixes
- Panel resonance and metal ring
- Bass loss and resonance from vibrating door panels
- Buzz and rattles at higher volume
- Low-frequency noise amplified by hollow panels
Where to Use It
Butyl mat goes on the structural side of the car: door skins (inner and outer), floor pan, trunk and rear deck, firewall, and wheel wells. These are the metal panels that radiate the most noise into the cabin.
For CLD applications across all of these areas, many installers and builders look to the Dynamat Xtreme collection as a proven CLD solution.
A Note on Butyl Quality
Not all butyl mats are equal.
- Premium butyl rubber stays bonded through engine bay heat and direct sun without softening, slipping, or releasing odors.
- Cheaper asphalt-based deadeners can melt at temperature, smell like tar in summer, and lose adhesion exactly when you need it most.
The damping effect only lasts as long as the mat stays where you put it, so material quality matters as much as coverage.
Acoustic Foam: Controls Airborne Noise and Heat
Where butyl handles structure-borne vibration, acoustic foam absorbs and manages airborne noise before it reaches the occupant. One common type used in vehicles is closed-cell foam, which fills the air gap behind interior trim and adds thermal insulation to limit heat transfer from the engine bay, exhaust tunnel, and roof.
It also acts as a buffer between the plastic interior trim and the metal frame beneath it. Without that buffer, the two surfaces vibrate against each other at speed, the source of most of the small rattles and creaks people blame on a "cheap" interior.
What You Feel Inside the Cabin
The cabin stops feeling hollow, echo drops, and the space feels insulated rather than reflective. Temperature stays more stable on long drives, particularly through the firewall and floor.
What It Fixes
- Road noise reflections inside the cabin
- Wind noise around door panels and roof
- Heat transfer from the engine and exhaust
- The hard, echoey character of an untreated interior
Where to Use It
Acoustic foam is layered over butyl mat, never instead of it. Apply it behind door panels and interior trim, under the carpet, and across the roof and headliner. Each placement adds another layer of absorption and sound dampening between the outside world and the cabin.
Dynaliner is the closed-cell foam built for this exact purpose.
A Quick Note on Materials
Some DIYers reach for hardware-store expanding foam to fill cavities behind door panels. That is not what this is. Expanding foam is not designed for automotive products or cabin acoustics, is not engineered for sound absorption at automotive audio frequencies, and performs poorly when used for that purpose.
Use closed-cell foam engineered specifically for automotive sound deadening.
Side-by-Side Comparison: Foam vs. Butyl
|
Category |
Butyl Mat |
Acoustic Foam |
|
Function |
Stops structure-borne vibration |
Reduces airborne noise transmission + adds thermal insulation |
|
Installation Position |
Bonded directly to metal panels |
Layered on top of butyl or between trim and structure |
|
Result Type |
Structural — felt instantly (solid panels, tighter audio) |
Acoustic + thermal — heard and felt over time (quieter, cooler cabin) |
|
Common Mistake |
Skipping foam and expecting full cabin quiet |
Using foam alone and expecting vibration control |
Why the Best Builds Use Both
A complete sound-deadening system layers the two separate materials. Butyl mat handles vibration first by stopping metal panels from acting as noise generators. Acoustic foam then manages the airborne noise still in the cabin.
The combined result is what professional installers and car manufacturers target:
- Tighter, cleaner audio system response
- A quieter cabin at highway speed
- Reduced fatigue on long drives
- Better thermal stability through the floor and firewall
This is the same layered approach used in OEM acoustic packages on premium vehicles. Mass-loaded vinyl, butyl rubber damping, and closed-cell foam are stacked together because no single material covers the full frequency range.
Skip one, and you absolutely cap the result.
Real-World Example: Door Treatment
Take a stock door with no treatment. The panel rattles at volume, midbass sounds weak, and road noise bleeds through every seal.
Apply a butyl sound deadener mat to the inner and outer door skins, and the panel goes silent. Bass tightens up, sound quality improves, and the speaker stops fighting a vibrating surround.
Add acoustic foam behind the door card, and the cabin quiets further. External noise drops, the door shuts with a deeper sound, and the audio system stops fighting the car.
How to Choose Based on Your Goal
The right starting point depends on which problem you notice most. Match the material to the symptom, and the build sequence takes care of itself.
|
Your Goal |
What to Use |
Why It Works |
|
Stop rattles and panel vibration |
Butyl mat (CLD) |
Apply to vibrating panels such as doors, floor sections, trunk areas, and the firewall. The mat controls resonance and cuts panel flex. |
|
Cut road noise and heat |
Closed-cell acoustic foam over treated panels |
Foam reduces airborne noise transmission and slows heat transfer once vibration is already controlled underneath. |
|
Build a quieter, more refined cabin overall |
Layered system: butyl mat + foam |
Butyl handles vibration. Foam handles airborne noise and thermal insulation. Used together across the doors, floor, firewall, and roof, they deliver a more complete result than either material alone. |
|
Get the biggest improvement on an initial budget |
Start with doors and floor areas |
These zones typically produce the most noticeable change for the money, which is why many installers begin there before expanding coverage later. |
Quick Installation Framework
The order matters as much as the materials. Skip a step or rush adhesion, and the layered system stops working as one.
- Apply butyl mat to roughly 25–50% of each panel. Press firmly so it sticks to the largest flat areas. Strategic coverage eliminates resonance without wasting material.
- Roll the mat firmly with a hand roller. Full adhesion is what activates the damping effect.
- Layer acoustic foam over the treated areas, sized to fill the gap between interior trim and structure.
- Reassemble panels and confirm no rattles before closing up.
Done correctly, you multiply the effect of either material used in isolation, and the difference is absolutely audible on the first drive.
Ready to build a quieter, more refined cabin? Start with the Dynamat Xtreme collection and layer Dynaliner over the top. Together, they create a complete automotive noise, vibration, and harshness (NVH) system engineered to quiet panel resonance, manage airborne noise, and limit heat transfer throughout the cabin.
Acoustic Foam vs. Butyl Mat: FAQs
Does Noise-Canceling Foam Really Work?
There's no such thing as truly "noise-canceling" foam. That's an active electronic technology. What people usually mean is acoustic foam, which dampens airborne noise and reduces reflections inside the cabin. It won't stop vibration on its own, which is why it should always be layered over a butyl sound deadener like Dynamat Xtreme for full results.
Is It Good to Put Sound Deadening in a Car?
Sound deadening is one of the most effective upgrades available for ride comfort, audio quality, and thermal control. It addresses unwanted noise and vibration at the source rather than masking them, which is why it's the industry standard for serious automotive sound-deadening builds.
The cost is absolutely justified by the performance gain in cabin quietness and audio system response.
Is Foam Good for Sound Deadening?
Acoustic foam is a critical second layer in a complete sound-deadening system, but the type matters:
- Open-cell foam (used in Dynamat Hoodliner and two layers of Dynapad) excels at absorbing airborne noise, such as wind, engine drone, and road hum.
- Closed-cell foam (Dynaliner) is engineered for thermal insulation and heat rejection, with secondary acoustic benefits for airborne noise.
Neither replaces butyl rubber damping like Dynamat Xtreme. Those layers handle structural vibration through hysteresis. Foam isn't a substitute. It's the absorption layer that finishes the system and delivers full cabin quietness.
Does Soundproofing Reduce Echo?
Acoustic foam reduces echo by absorbing the sound waves that would otherwise reflect off hard surfaces inside the cabin. The result is a tighter, more insulated acoustic environment with less reverb and a cleaner audio system response.
Is There Such a Thing as Sound-Deadening Foam for Cars?
Yes, but the term “sound-deadening foam for cars” is often used loosely. In automotive NVH applications, foam products are more accurately referred to as acoustic foam.
These foams help absorb airborne noise inside the cabin, unlike CLD materials that control panel vibration and structure-borne noise.
Automotive acoustic foam generally falls into two categories:
- Open-cell foam: Used to absorb airborne sound waves. Common in hood insulation and layered acoustic barriers.
- Closed-cell foam (CCF): Used more for thermal insulation and decoupling panels, though it can still help with some airborne noise control.
Most effective vehicle builds combine acoustic foam with a dedicated sound-deadening material like Dynamat Xtreme, since each material targets a different type of noise.

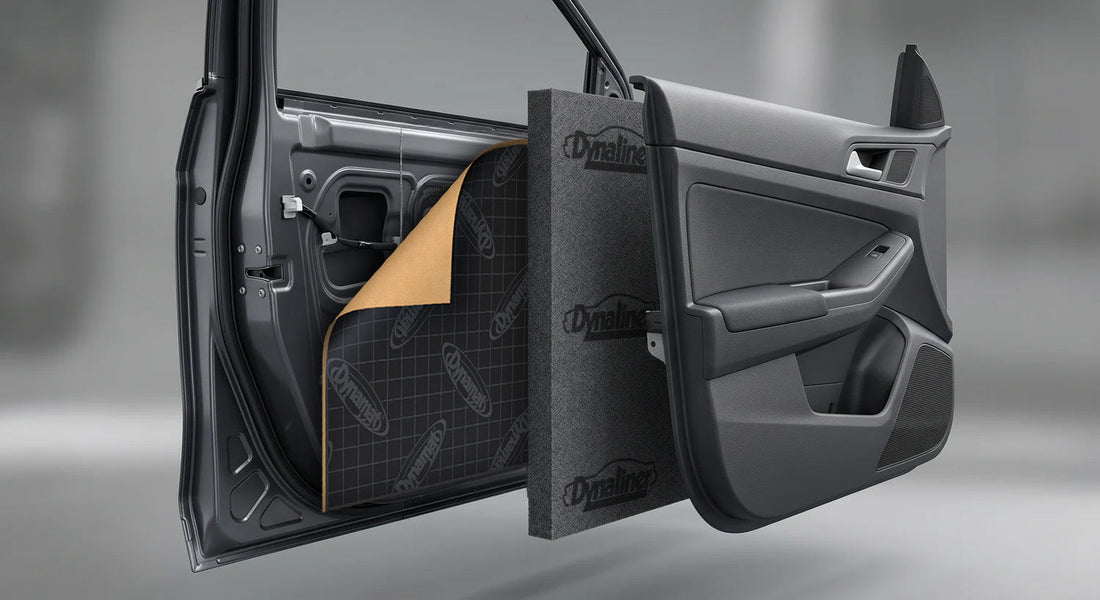

*Hero image generated using AI.
